Amazon DynamoDB Query

What is Dynamo DB

It is a hosted NoSQL database provided by AWS (Amazon Web Services). Amazon DynamoDB offers a small, relatively simple API that supports both basic key access and more advanced query patterns; a managed experience, preventing the need to SSH-ing into servers for upgrading the crypto libraries; also provides reliable performance even as it scales.

For the following use cases, in particular, DynamoDB works well:

• Data Sets with Simple, Known Access Patterns: DynamoDB is a quick, dependable option if you create recommendations and serve them to users because of its straightforward key-value access patterns.
• Serverless Applications Using AWS Lambda: In response to event triggers, AWS Lambda offers auto-scaling, stateless, ephemeral computing. Building Serverless applications are a perfect fit for DynamoDB query because it performs authentication & authorization via IAM roles and is accessible via an HTTP API.
• Applications with Large Amounts of Data and Strict Latency Requirements: JOINs and complex SQL operations can make queries take longer as your data volume grows. Your queries will execute with predictable latency with DynamoDB up to and including 100 TBs in size!.

Amazon DynamoDB is a fully managed NoSQL database service that offers quick and dependable performance with seamless scalability. You can free yourself from having to worry about hardware provisioning, setup, replication, software patching, and cluster scaling by using DynamoDB to offload the administrative tasks associated with operating and scaling a distributed database.

Concepts

There are some key concepts that we should know in the Amazon DynamoDB query:

• Read and Write Capacity;
• Primary Keys;
• Secondary Indexes;
• Tables, Items, and Attributes.

Read and Write Capacity

• A specific server is provisioned to host your database when you use a database like MySQL, Postgres, or MongoDB.
• You must decide on the size of your instance, including the number of CPUs, RAM, storage GBs, and other factors.
• You can automatically scale your read and write capacity units with DynamoDB.
• As a result, it is much simpler to scale your application up during busy periods and down during off-peak hours to save money.
• Unlike DynamoDB query, though. You should provision read and write capacity units instead. The number of operations per second allowed by these units is fixed.
• Pricing can more closely reflect actual usage in this environment, which is fundamentally different from the instance-based world.

Primary Key

A primary key serves as the unique identifier for every item in a table. when adding a new item to the table, the primary key must be provided and the primary key must be defined at the creation of the table.

There are two different kinds of primary keys: a composite primary key composed of a partition key and a sort key and a simple primary key composed only of a partition key.

1. Composite Primary Key: It is comparatively more difficult to use the composite primary key. The sort key is used to (wait for it) sort items with the same partition. Both a partition key and a sort key are specified when using a composite primary key. An Orders table for tracking customer orders on an e-commerce website is one example. CustomerId would serve as the sort key and OrderId as the partition key.
2. Simple Primary Key: Using a Simple primary key or Accessing rows in a SQL table by a primary key are both common key-value stores like Memcached. One example would be a Users table with a Username as the primary key.

How to Use Query?

Request Syntax

Request Parameters

Response Syntax

Response Elements

Errors

• ResourceNotFoundException - HTTP Status Code: 400, An attempt was made to access a table or index that didn't exist. The resource may not be properly specified or its status may not be ACTIVE.
• RequestLimitExceeded - HTTP Status Code: 400, The throughput amount for your account has been exceeded. To request a quota increase, please get in touch with AWS Support.
• ProvisionedThroughputExceededException- HTTP Status Code: 400, Your request volume is extreme. Requests that encounter this exception are automatically retried by the AWS SDKs for the DynamoDB query. Unless your retry queue is too big to finish, your request is eventually successful. Limit the number of requests per second and employ exponential backoff. Visit Error Retries and Exponential Backoff in the Amazon DynamoDB query Developer Guide for more details.
• InternalServerError - HTTP Status Code: 500, An error occurred on the server side.

Examples

1. Count Items

This example returns the number of items for a specific forum in the Thread table.

Sample Request

Sample Response

2. Retrieve a Range of Items

The example that follows searches a forum's Reply table for comments made by specific users. For quick lookups on these attributes, the Reply table has a local secondary index called PostedBy-Index.

Which attributes are returned is determined by the ProjectionExpression parameter.

Sample Request

Sample Response

Querying Tables and Indexes: Java

You can query a table or a secondary index in Amazon DynamoDB query using the Query operation. A partition key value and an equality test must be supplied. By including a sort key value and a condition, you can narrow the results if the table or index has a sort key.

The steps to retrieve an item using the AWS SDK for Java Document API are as follows.

1. Create a `DynamoDB class instance.
2. To represent the table you want to work with, create an instance of the Table class.
3. Call the Table instance's query method. Along with any optional query parameters, you must specify the partition key value of the items you want to retrieve.

An ItemCollection object containing all of the items the query returned is included in the response.

The tasks mentioned earlier are shown in the following Java code example. The example presumes that your system has a Reply table that stores forum thread replies.

Each forum thread has a distinct ID and is capable of receiving one reply or more. Therefore, the forum name and forum subject are both included in the Id attribute of the Reply table. The composite primary key for the table is made up of the partition key Id and the sort key ReplyDateTime.

The following query returns all comments for a particular thread subject. The table name and the Subject value are both necessary for the query.

Querying Tables and Indexes: .NET

You can query a table or a secondary index in Amazon DynamoDB query using the Query operation. A partition key value and an equality test must be supplied. By including a sort key value and a condition, you can narrow the results if the table or index has a sort key.

The steps to query a table using the basic AWS SDK for .NET API are listed below.

1. Create an AmazonDynamoDBClient class instance.
2. Create a new instance of the QueryRequest class and enter the parameters for the query operation...
3. Use the QueryRequest object you created in the previous step to call the Query method. The QueryResult object, which offers all the results of the query, is part of the response.

The below example of C# code shows the preceding tasks. The code assumes that you have a Reply table with replies to forum threads.

Each forum thread has a distinct ID and is capable of receiving one reply or more. As a result, the Id (partition key) and ReplyDateTime make up the primary key (sort key).

The following search returns all comments for a particular thread subject. Both the table name and the Subject value are necessary for the query.

How to Query Amazon DynamoDB?

Hash Key in DynamoDB

The main reason for that complexity is that the DynamoDB query requires the hash key to be queried. Consequently, it is prohibited to query the entire database. which means you cannot perform what would be known as a full table scan in another database.

The sort key is a second attribute that can be included in the primary (partition) key. The essential search requirement is = (equals). However, the sort key operators include:

• 〉
• 〈
• 〉=
• 〈=
• _
• between
• begins_with

Each query consists of two separate parts:

1. The filter expression
2. The partition key hash, the key condition query, and optionally the sort key.

Load Sample Data

Below are some examples, but first, some data is required:

1. Install and run DynamoDB locally.
2. Install node to enable JavaScript execution.
3. Using the npm module from the node, install the Amazon SDK using npm install aws-sdk

Run these programs from the Amazon JavaScript examples:

1. Run MoviesCreateTable.js to create the Movies table.
2. Unzip the sample data downloaded from this page.
3. Run MoviesLoadData to load some data.

Inspect the Data

Take a look at the data file's header. It is a movie database with arrays and nested JSON fields. It is therefore intended for use as a teaching exercise.

Describe Table

You can check to see if the data was loaded by using:

Query Structure

For query execution, we'll use the Amazon CLI command line interface. The principles apply whether you're using one of the programming languages SDKs or another. Only the syntax varies throughout.

There are two components to queries:

1. Filter expression
2. Key condition expression

Filter Expressions for Query

Keep in mind that the key condition is used to choose a set of records based on how they are divided. A subset of the database is pulled, and that subset is then queried in the filter expression.

In the example below, we want to display all 2010 movies with a rating of at least 8.5. The year is obtained by the (1) key condition, and the (2) filter expression enables you to query by rating all 2010 movies. Because there are less data to query, it is designed this way for speed.

Similar to the key condition, the filter expression consists entirely of an attribute on the left, an operator in the middle, and a placeholder on the right. In other words, it isn't JSON, even though JSON is used elsewhere.

Key Condition Expressions for Query

The partition key and, optionally, the sort key may both be present in the key condition expression. DynamoDB refers to this primary key as the partition key. A second key, referred to as the sort key, is an additional option. Year is the partition key name and Title is the sort key in the movies database. Only equals to (=) are supported in the partition key query expression. However, the sort key operators include:

• 〉
• 〈
• 〉=
• 〈=
• _
• between
• begins_with

The word "year" is a reserved word in the Amazon sample data. Therefore, we must address that complexity right away.

Below is the query. As the continuation character in the bash shell, we use backslashes (\) to end each line. Similarly, we enclose JSON in a single quote (') to allow it to span multiple lines.

This expression is formatted as partition key name = placeholder.

Additionally, a sort key could be added, which in this database is the title. However, since we are looking for a title rather than searching by one, we don't want it here.

Retrieving All Items With a Given Partition Key

As discussed earlier, Whether retrieving a User's profile or changing a User's name, we typically manipulate one User at a time.

In other circumstances, such as when working with Orders, it is less beneficial. Sometimes we want to grab a specific Order, but other times we might want to show all the Orders for a specific User. For each User's Orders, it would be inefficient to store the various partition keys and then query those items separately.

Let's see how we can fulfill the latter request by making a Query API call. Our daffy duck User's Orders will first be fully retrieved. What matters to notice here is the —key-condition-expression option. We decide which options to choose in this manner.

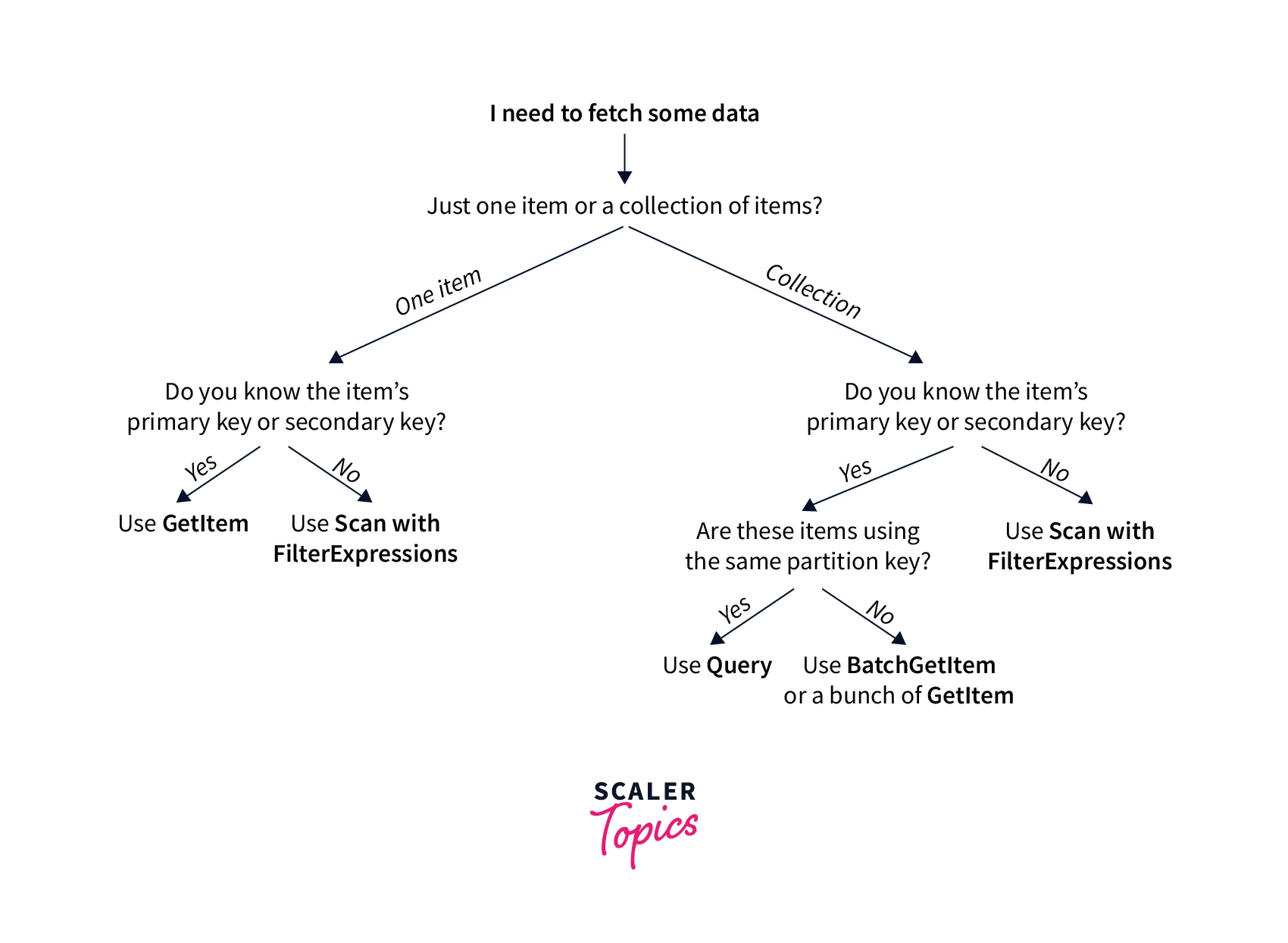

DynamoDB Scan VS Query – When to Use What?

DynamoDB query provides two methods for accessing stored data: Query and Scan.

When to Use What?

In general, you should always choose Query over Scan. If it's a frequently used pattern and it's not possible (for instance, when you're trying to find a piece of data with a key you don't know), think about adding a GSI (Global Secondary Index) to index that attributes and enable Query. Use Scan as a last resort.

The use of DynamoDB Scan and Query operations is fundamentally different, despite their closer resemblance. You can retrieve all of your data using scans, but they can be expensive and perform poorly. Queries, which are much better than scans because they let you retrieve data by partition key, can, however, restrict how you can access your data.

For the reasons listed above, it's important to carefully design your table so you can take advantage of Query or GetItem operations as much as possible. By doing this, you can keep costs to a minimum while still getting the best results, regardless of scale.
