Azure Virtual Network

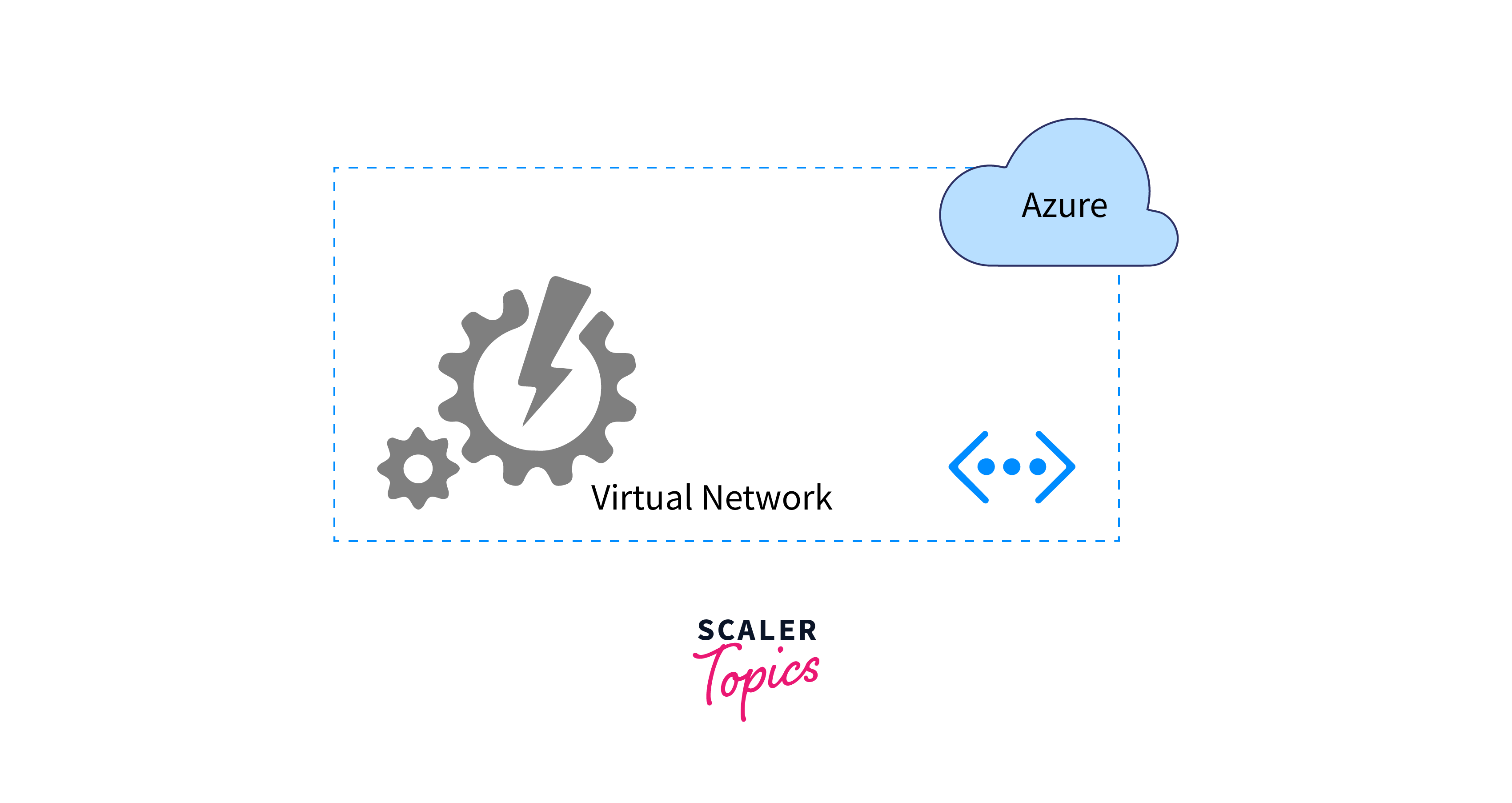

What is Azure Virtual Network?

Azure Virtual Network is one of the services provided by Azure, allowing organizations to create their private network environment in the cloud for establishing secure and isolated connections between various Azure resources, and on-premises data centers, and even extend on-premises networks to the cloud. Let's explore how Azure VNet implements security in each case:

Connection to the Internet:

• Azure provides Network Address Translation (NAT) for resources deployed within a VNet.
• Azure Firewall is used to control traffic by defining rules to permit or deny specific traffic based on source, destination, port, and protocol.
• Azure DDoS Protection Standard service is available for VNets to safeguard them from Distributed Denial of Service (DDoS) attacks.

Connections between Azure Resources:

• Network Security Groups (NSGs) are security features that are associated with subnets and use inbound and outbound security rules to control traffic flow between Azure resources.
• Azure Virtual Network also supports service endpoints that allow Azure services, to be accessed securely from within the VNet without reaching the public internet.

Connections with On-Premises Resources:

• Azure VPN Gateway enables secure communication between Azure VNets and on-premises networks. The VPN Gateway supports:
  • Site-to-site VPN where an encrypted tunnel is established between the on-premises VPN device and the Azure VPN Gateway, allowing resources in both environments to communicate securely
  • Point-to-site VPN which enables secure communication between individual devices and the VNet.
• Azure ExpressRoute provides a dedicated private connection between an on-premises network and an Azure VNet, bypassing the public internet.
• Virtual network Azure acts as a hybrid Cloud which facilitates seamless integration between on-premises and cloud resources. We can access all the cloud resources from the on-premise cloud environment.

Advantages of Using Azure Virtual Network

• Virtual network azure provides the ability to create a secure and isolated network environment in the cloud.
• Feature to design custom network topologies within a VNet, including multiple subnets with their unique IP address ranges.
• Provides secure and encrypted connections between on-premises networks and Azure VNets through VPN Gateway.
• Ensures high availability of network connectivity within VNets, providing consistent and reliable access to resources.
• Scalability features for the accommodation of increasing demand for resources without affecting performance.
• Integrates with other Azure services like Azure Load Balancer, Azure Application Gateway, and Azure Firewall, enabling a complete networking solution.
• Cost optimization by controlling data traffic and efficiently utilizing resources within the VNet.
• Connectivity between on-premises networks and resources in the cloud, enabling hybrid cloud scenarios and easy migration of workloads.

Components of Azure VNet

• Address Space:
  Represents the range of private IP addresses that can be used within the network. When creating a VNet, users define the address space using CIDR notation, such as 10.0.0.0/16, which provides a pool of IP addresses for resources within the VNet.
• Subnets:
  Allow users to further divide the address space of a VNet into smaller segments, each with its range of IP addresses. For example, a VNet can have subnets for web servers, application servers, and databases, each with its unique IP address range.

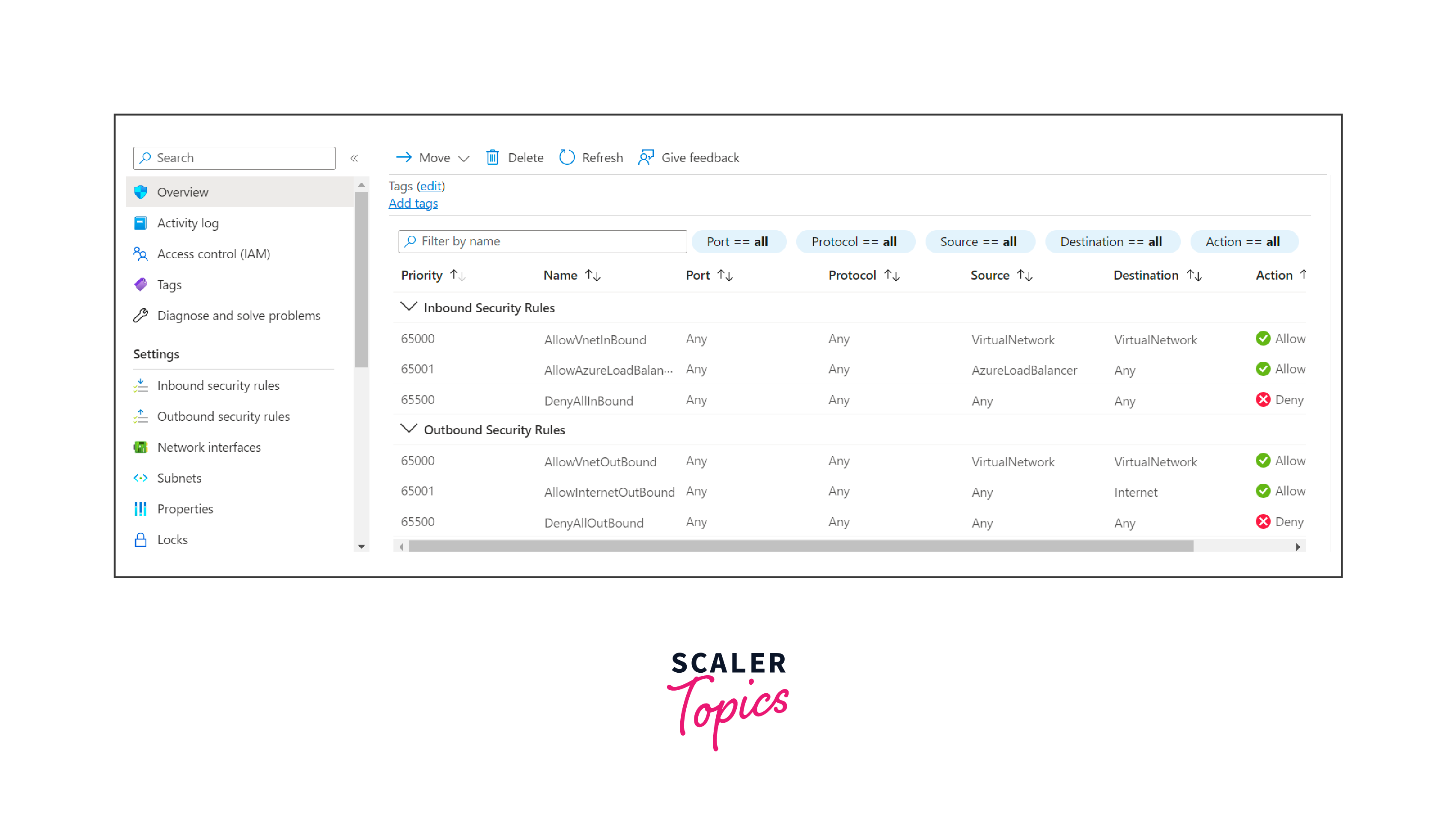

• Network Security Groups (NSGs):
  Azure's built-in firewall mechanism that provides security at the network level. NSGs contain a set of inbound and outbound security rules that control traffic flow to and from resources within subnets.
• Virtual Network Gateway:
  Responsible for routing traffic between VNets and on-premises networks connected through VPN Gateway or ExpressRoute.
• Azure DNS:
  Provides domain name resolution for resources within a VNet. It allows users to create custom domain names for Azure resources and manage DNS records for better accessibility.

How to Launch an Instance Using Azure VNet?

A Virtual network Azure acts as a container for multiple resources that can be assigned to different subnets. We can create multiple virtual machines that belong to the same virtual network by using different subnet addresses. The process of creating a virtual network Azure and Virtual Machine is illustrated in the next section.

Demo: Step-By-Step Demo of Creating Azure Virtual Machine and Virtual Network

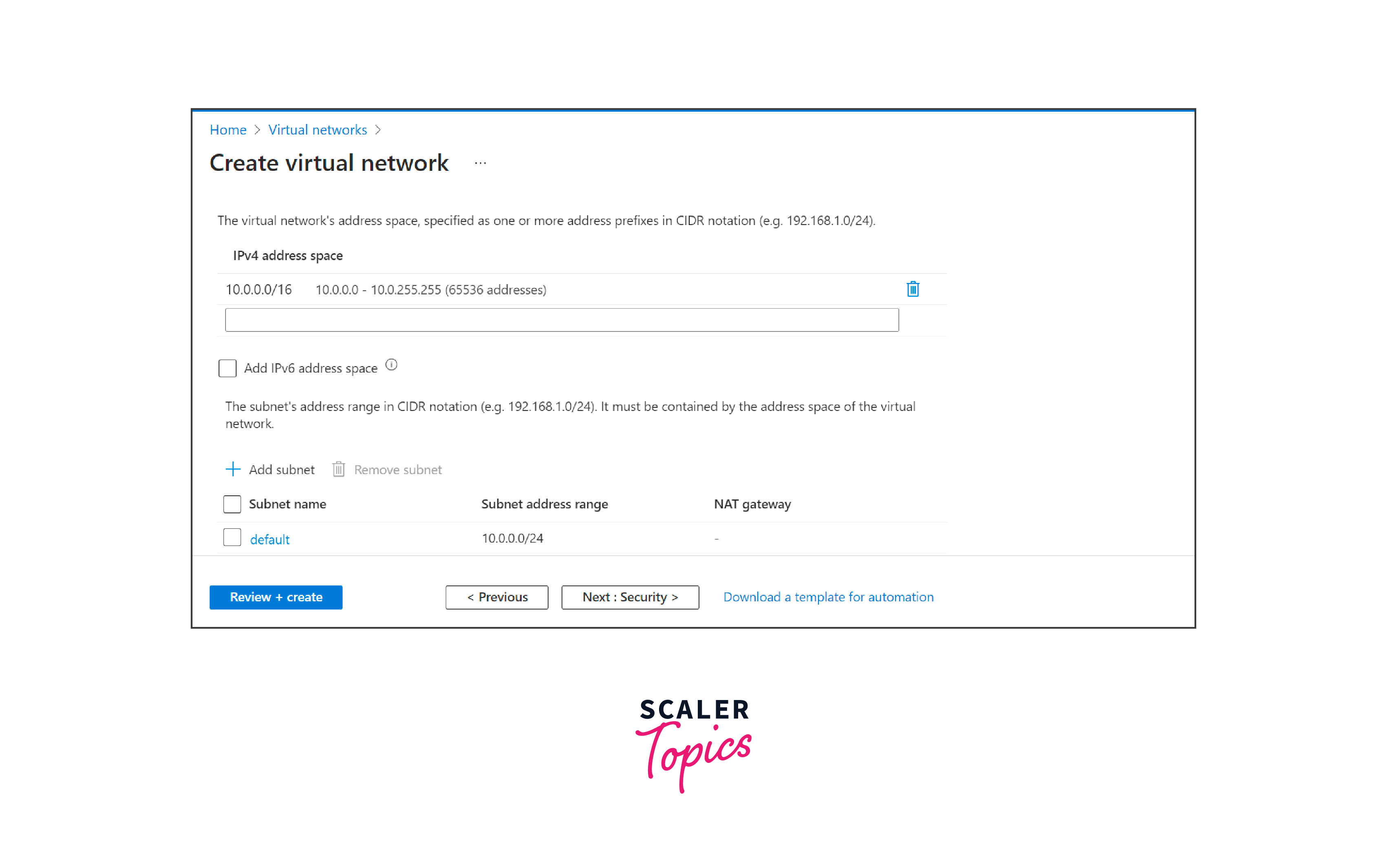

Step 1: Create a VNet

• In the Azure Portal, click on Create a resource in the left-hand navigation pane and

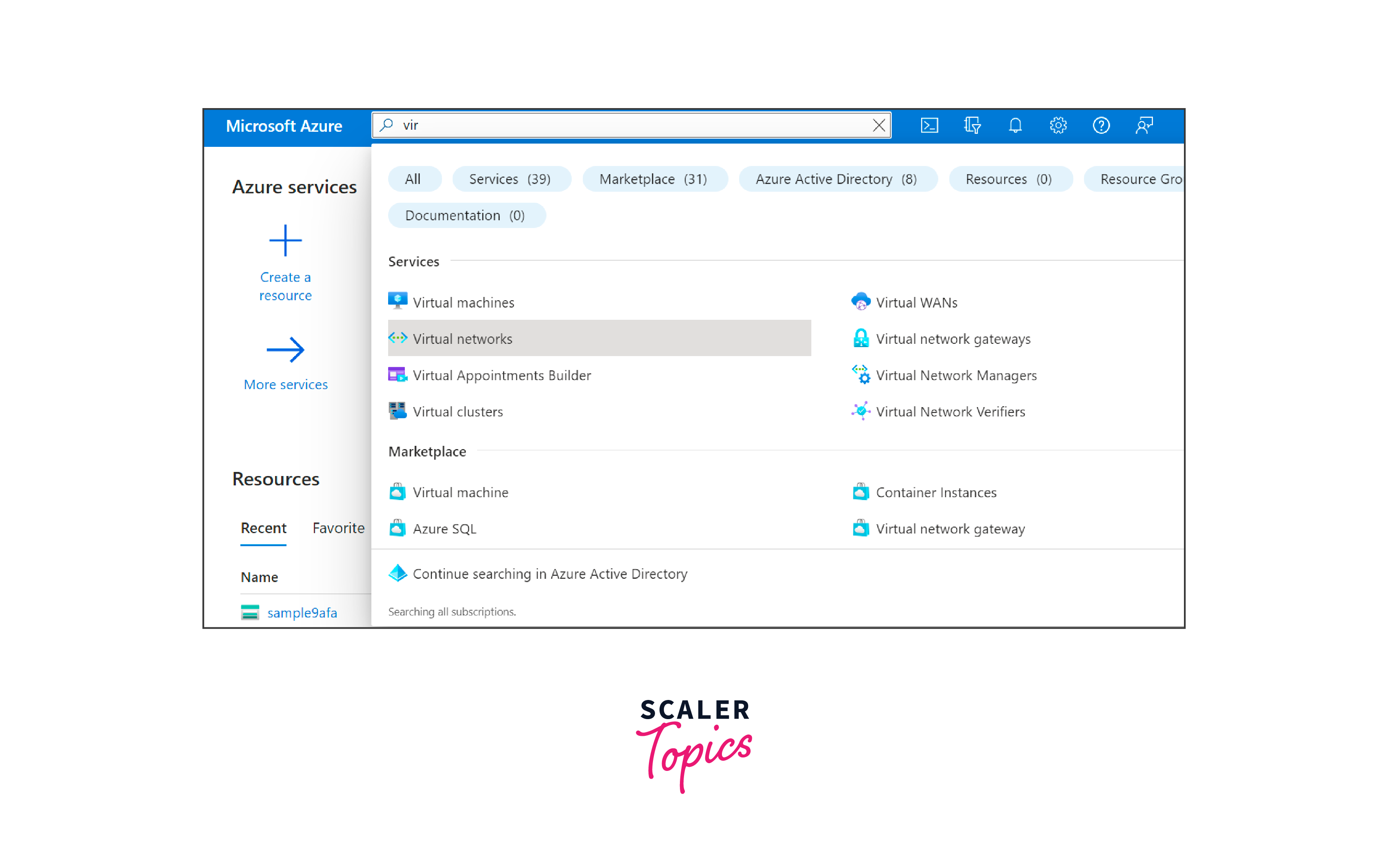

• Search and click on Virtual Network from the search results.

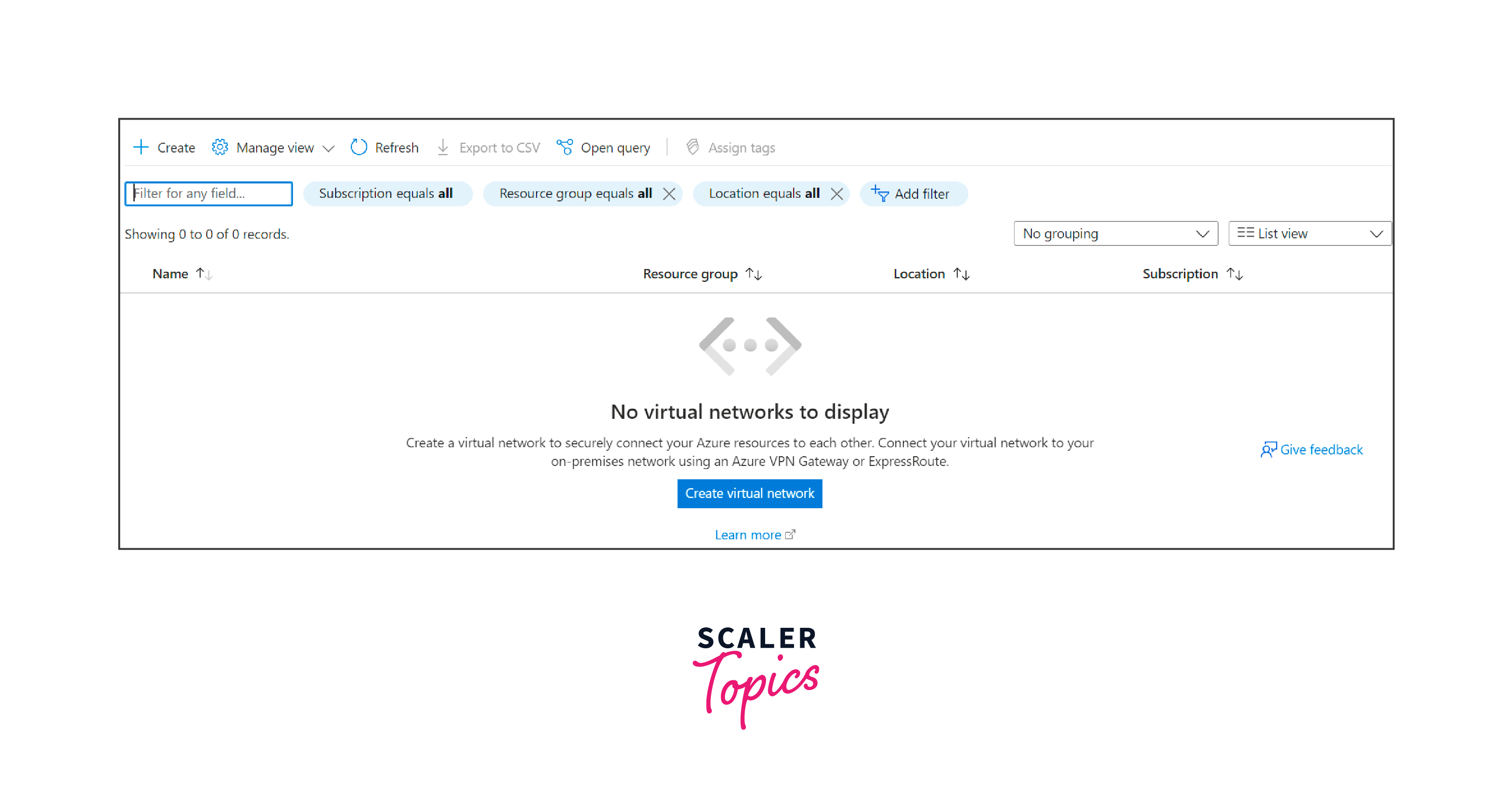

• Click on Create Virtual Network to start the VNet creation process.



• Fill in the required details:

  • Region:
    Select the Azure region where you want to deploy the VNet.
  • IP address range:
    Specify the IP address range for the VNet, using CIDR notation (e.g., 10.0.0.0/16).
  • Subnet name and address range:
    Create a subnet within the VNet, providing a name and its IP address range (e.g., 10.0.0.0/24).
  • Click on Review + Create to create the Virtual Network.



Step 2: Create a Network Security Group

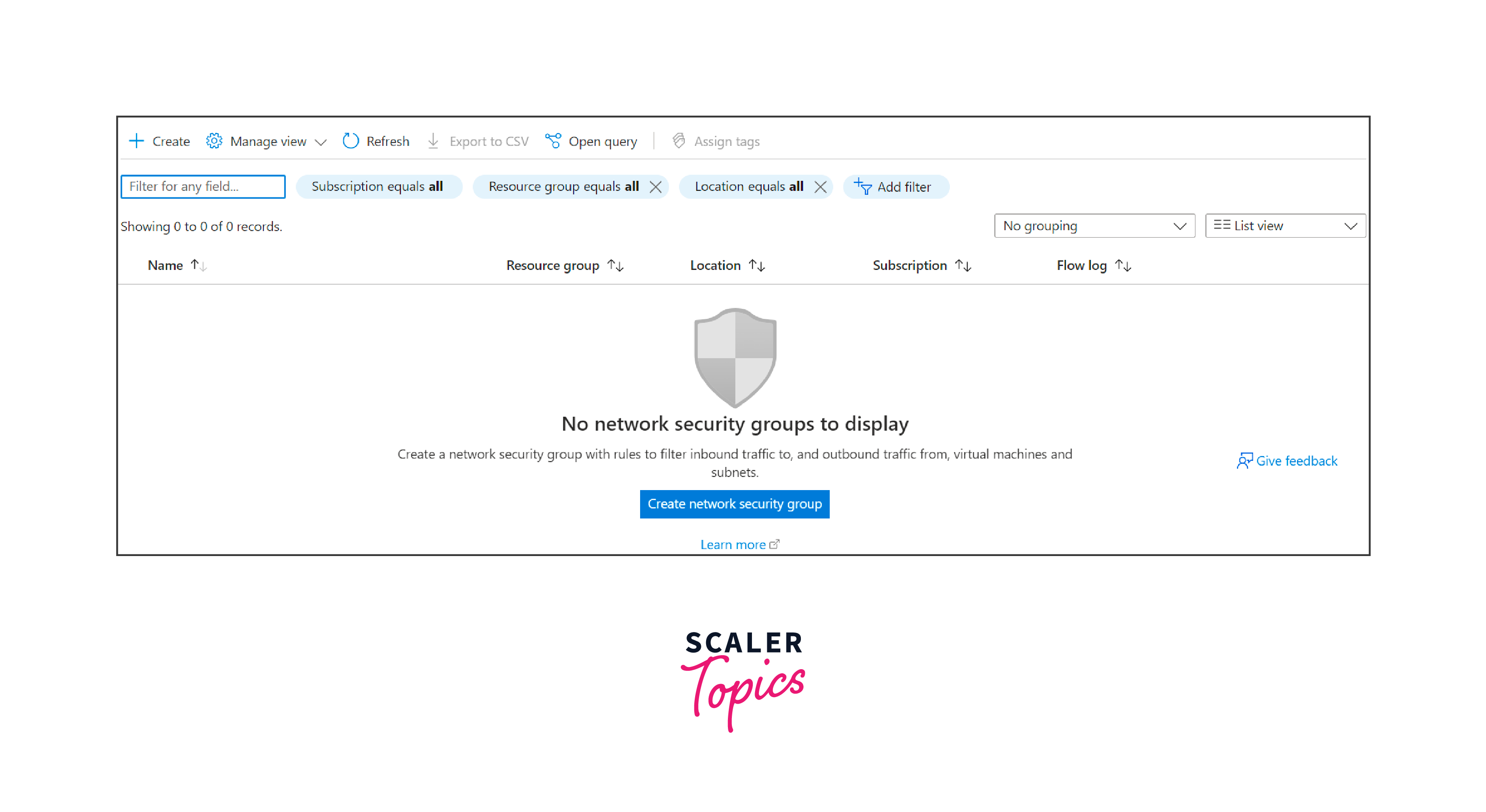

• In the Azure Portal, click on Create a resource and search for Network Security Group.

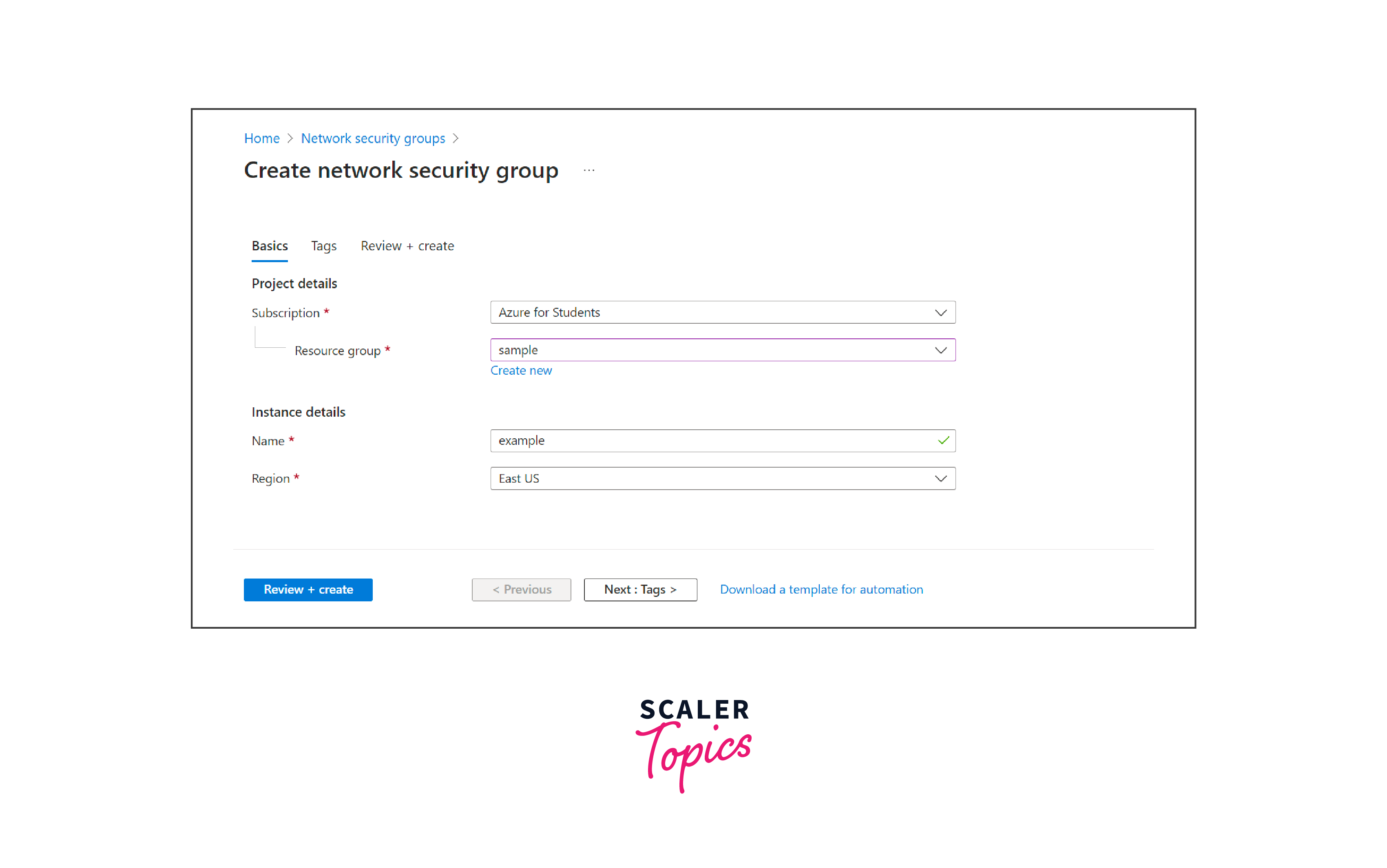

• Click on Create and fill in the required details for the NSG, such as name, subscription, resource group, and region, and click Create.



• Define inbound and outbound security rules by using the Settings tab in the NSG to allow or deny specific types of traffic.



Step 3: Create an Azure Virtual Machine (VM)

• In the Azure Portal, click on Create a resource and search for Virtual Machine.

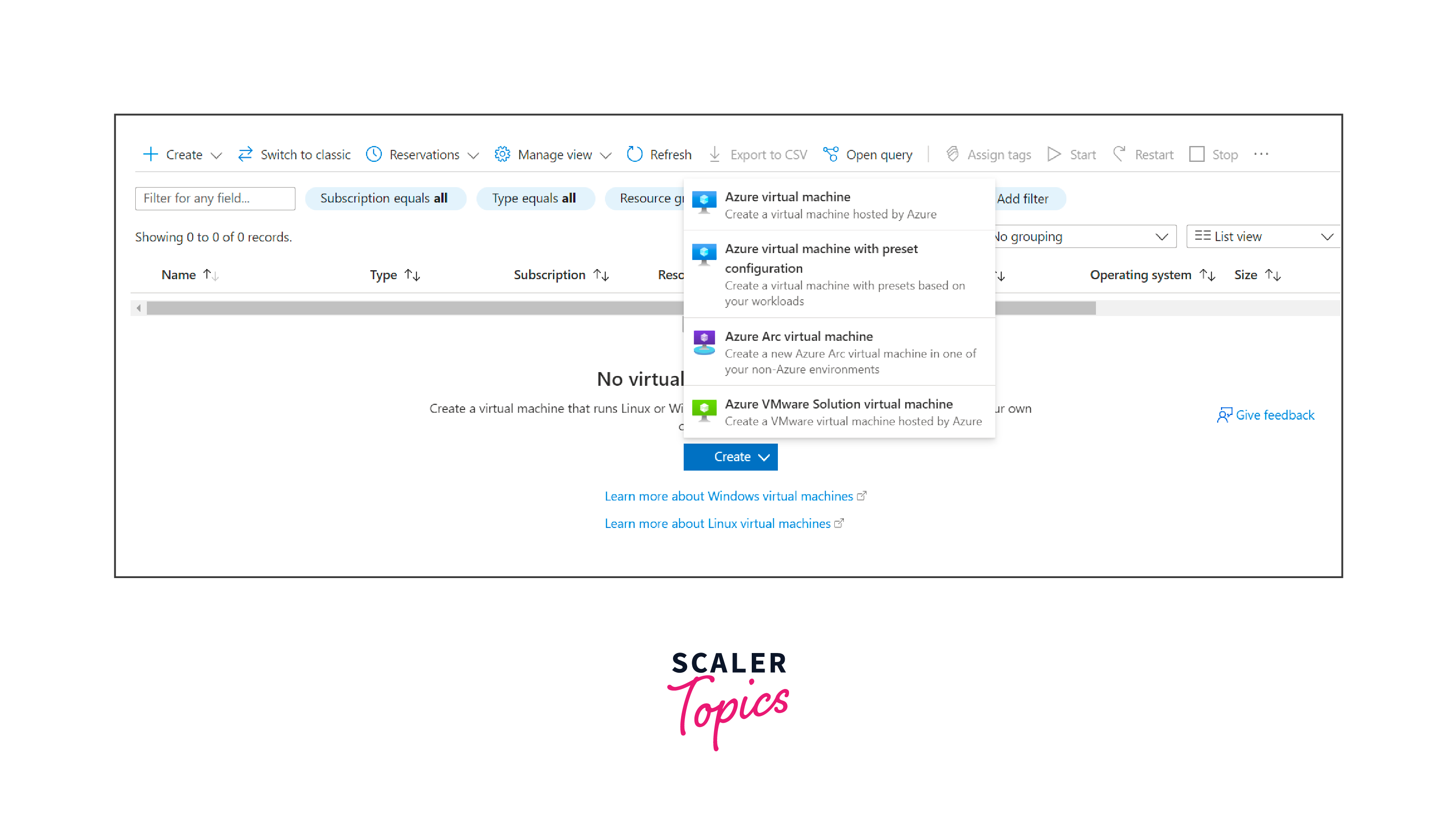

• Click on Virtual Machine from the search results to start creating the VM. Select Azure Virtual Machine from the menu.



• Fill in the required details in the Basics tab:

  • Image:
    Choose the operating system image for the VM, such as Windows or Linux.
  • Size:
    Select the size of the VM based on your requirements.
  • Username and password (for Windows) or SSH public key (for Linux): Provide login credentials for the VM.
  • Click on the Networking tab on the top to proceed to the next step.

Step 4: Configure Networking

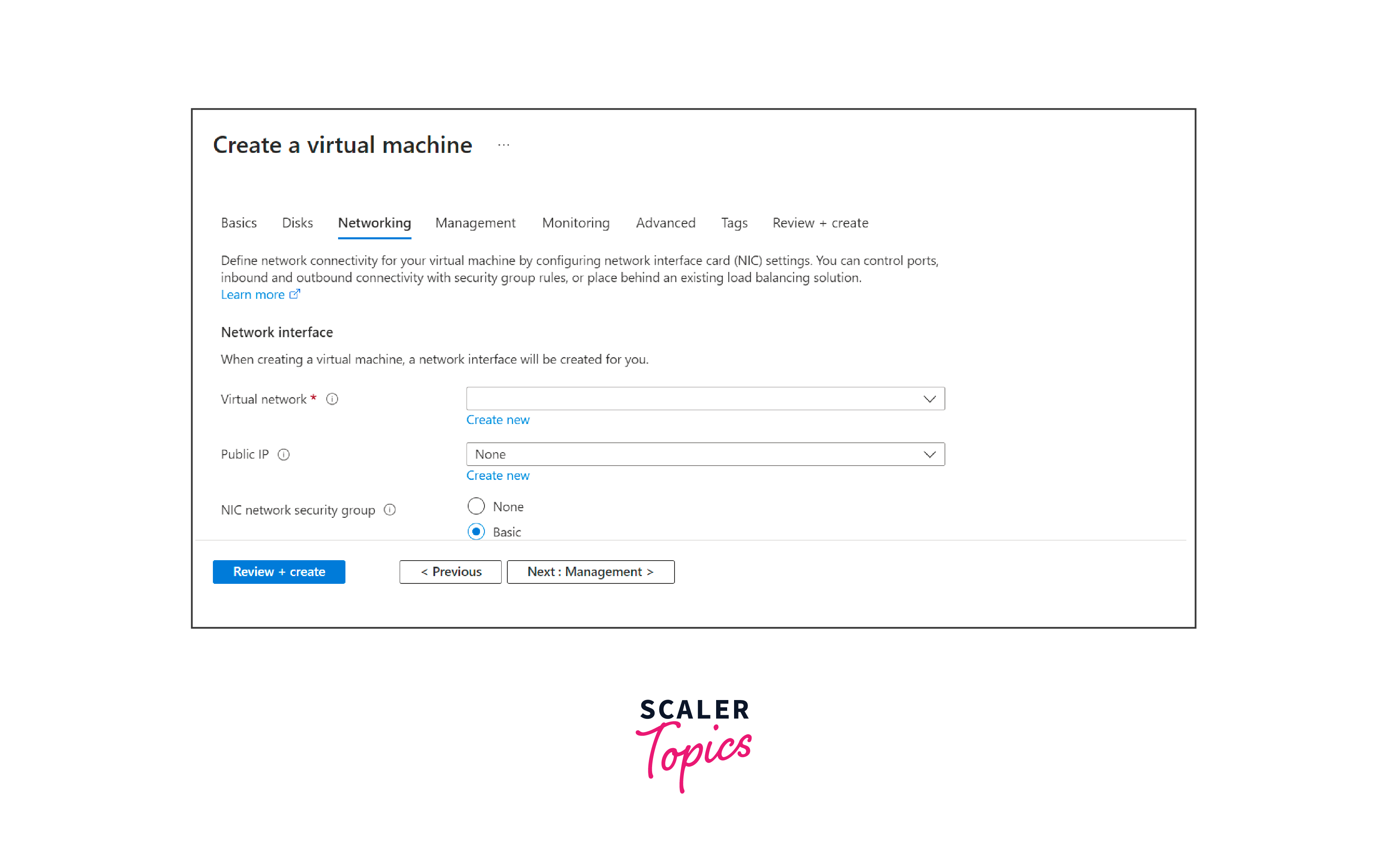

• In the Networking tab, select Virtual network and choose the VNet and subnet you created earlier.



• Choose whether to assign a public IP address to enable internet access for the VM (optional).

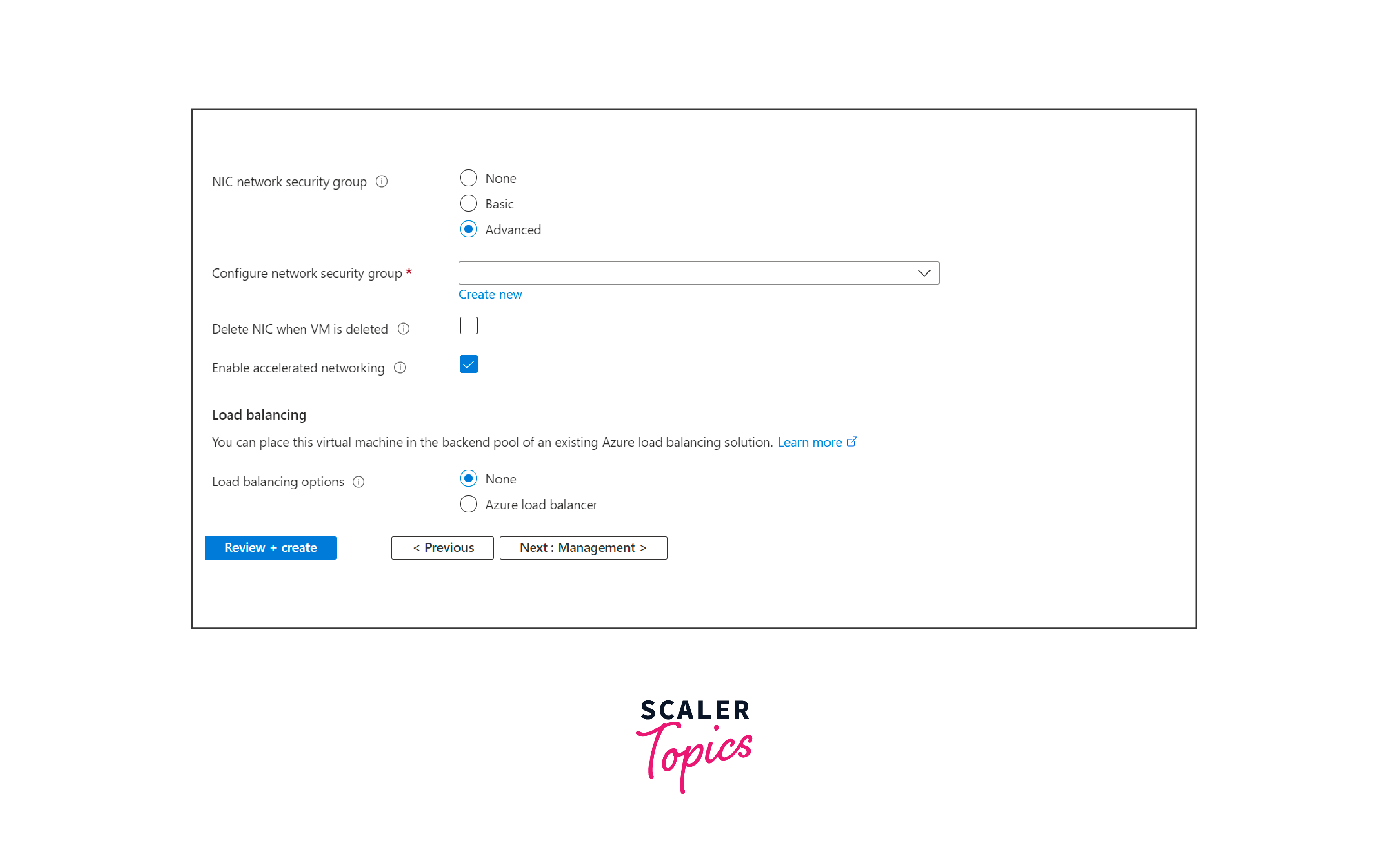

• Select the Network Security Group you created earlier, if applicable.



Step 5: Review and Create the VM

• Review all the settings you configured for the VM.
• If everything looks correct, click on Create to start the VM deployment process.

You have now successfully created an Azure Virtual Network and launched a Virtual Machine within that VNet.
