Dual Mode Operations in OS

What is Dual Mode Operation in OS?

Dual Mode Operation in an operating system is a critical concept that ensures the system's stability, security, and efficient resource management. It involves the capability of the CPU to switch between two distinct privilege levels: user mode and kernel mode. This distinction is crucial for maintaining system integrity and preventing unauthorized access to critical resources.

Reasons for Implementing Dual Mode Operation

The key reasons for implementing dual-mode operation in an operating system are:

• Security:
  By separating user mode and kernel mode, the OS can protect sensitive system resources from unauthorized access or malicious software. User mode processes are isolated from direct hardware control, preventing them from compromising system integrity.
• Stability:
  Dual mode operation helps in maintaining system stability. If a user mode process encounters an error or crashes, it does not affect the kernel mode or other processes. The OS can handle errors gracefully and prevent them from causing system-wide failures.
• Resource Management:
  Kernel mode allows the OS to efficiently manage system resources, allocate memory, schedule processes, and control I/O operations. Without this privileged mode, user processes could potentially disrupt the system's resource allocation and execution.
• Isolation:
  User mode processes are isolated from one another. Even if one user mode process crashes or misbehaves, it does not directly impact other processes or the operating system itself. This isolation contributes to system reliability.

Dual mode operation is a fundamental architectural feature in modern operating systems that ensures a clear separation of privilege levels between user processes and the operating system kernel. It plays a crucial role in maintaining system security, stability, and resource management, ultimately contributing to a reliable and secure computing environment.

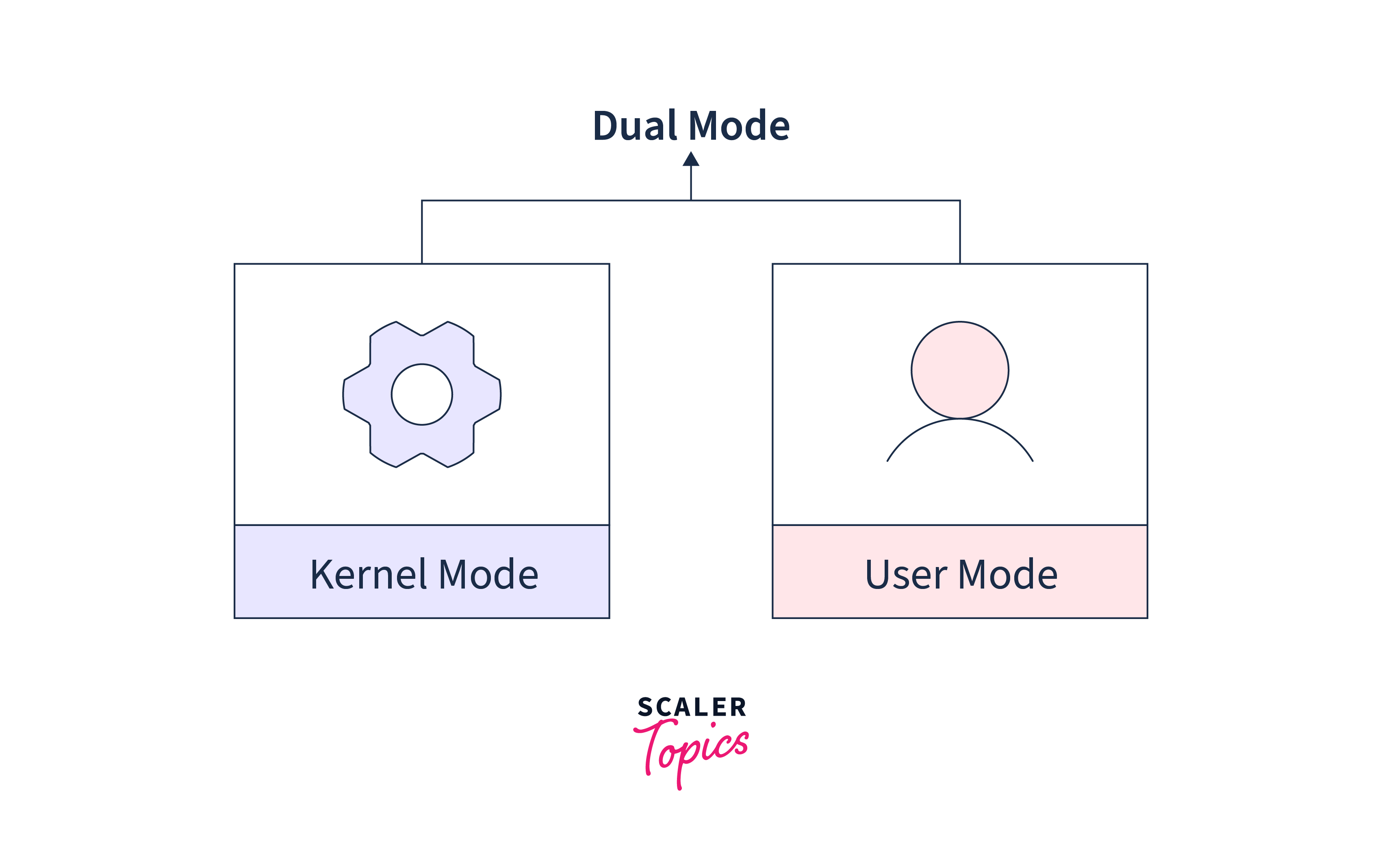

Types of Dual Mode Operation in OS

In operating systems, the concept of dual mode operation typically refers to the two primary privilege levels or modes in which a CPU can execute code: User Mode and Kernel Mode. These modes help to differentiate and control the level of access and privileges that different parts of the operating system and user programs have.

User Mode

• User Mode is the mode in which normal user-level applications and processes run.
• In this mode, programs are restricted in terms of what system resources and instructions they can access directly. For security and stability reasons, user-level code cannot perform certain privileged operations directly.
• User Mode code runs with limited access to hardware and system resources to prevent accidental or malicious interference with critical system functions.
• Examples of user-level applications include word processors, web browsers, games, and other software that end-users interact with.

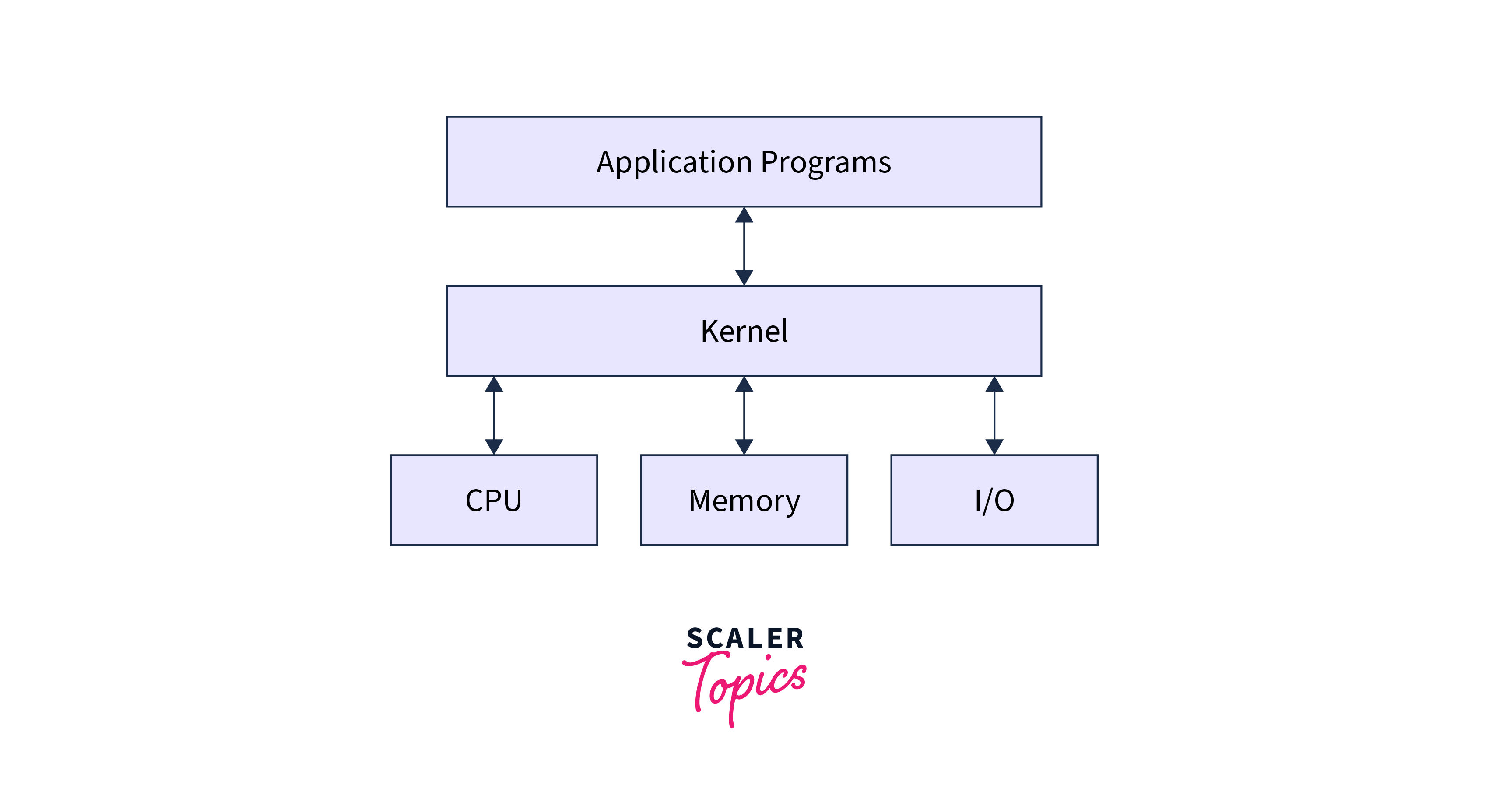

Kernel Mode

• Kernel Mode, also known as Supervisor Mode or Privileged Mode, is a higher privilege level compared to User Mode.
• In this mode, the operating system's kernel code runs, which has unrestricted access to the hardware and can execute privileged instructions.
• The kernel manages system resources, handles hardware interrupts, schedules tasks, and performs other critical operating system functions.
• Kernel Mode is where essential operations like managing memory, I/O, and process scheduling take place.
• Access to Kernel Mode is typically tightly controlled to prevent unauthorized or malicious code from disrupting system stability.

In a dual-mode operating system, the transition between User Mode and Kernel Mode is carefully controlled and managed. When a user-level application needs to perform a privileged operation (e.g., accessing hardware devices or requesting memory allocation), it makes a system call to the operating system. The operating system then switches the CPU from User Mode to Kernel Mode to execute the requested operation on behalf of the user-level application. Once the operation is complete, the CPU returns to User Mode.

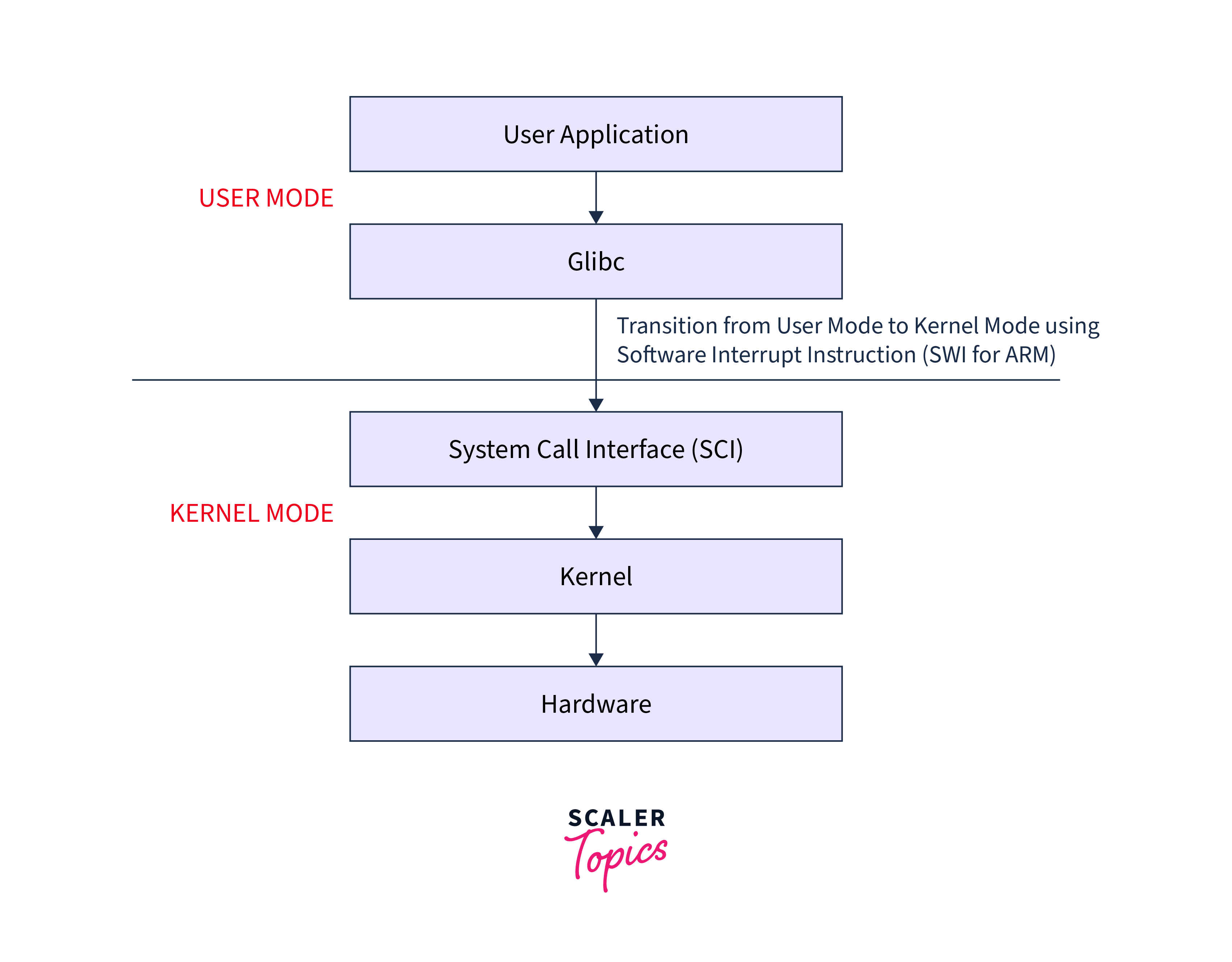

User Mode and Kernel Mode Switching

The transition between user mode and kernel mode is a carefully managed operation orchestrated by the operating system. This transition is crucial for processes to access services that require kernel-level privileges. It occurs through a mechanism known as the System Call Interface (SCI) or, more commonly, system calls.

This is how the transition from user mode to kernel mode takes place:

• System Call Invocation:
  When a user-mode process needs to access a resource or service that demands kernel-mode access, it initiates the transition by invoking a system call. This is typically done through libraries like Glibc. System Call Preparation: The library prepares the system call by setting up the necessary arguments according to the platform's Application Binary Interface (ABI).
• Software Interrupt:
  To transition to kernel mode, the library triggers a software interrupt instruction (e.g., SWI instruction for ARM). This instruction signals the processor to switch from user mode to supervisor mode (kernel mode) by modifying specific mode bits in a control register.
• Kernel-Mode Access:
  Once in kernel mode, the process gains unrestricted access to kernel code, and the Memory Management Unit (MMU) allows access to kernel virtual memory.
• System Call Handling:
  The execution flow proceeds to a predefined vector address, where the system call handling routine is located (e.g., vector_swi() for ARM). This routine extracts the system call number (SCNO) from the software interrupt instruction and directs execution to the corresponding system call function in the system call table (sys_call_table).
• System Call Execution:
  The requested system call is executed, allowing the process to access the desired kernel-level service or resource.
• Transition Back to User Mode:
  After the system call is completed, control is eventually returned to user mode. Before doing so, the user-space registers are restored to their original state to ensure a seamless transition back to user mode.

User mode and kernel mode switching is the linchpin of modern operating systems, balancing the need for user processes to access privileged services with the imperative of protecting system integrity. This elegant mechanism exemplifies the core principles of system security, stability, and resource management that underpin the functioning of all contemporary computing systems.

User Mode vs. Kernel Mode

Need of Dual Mode Operation in OS

Isolation and Protection:

• Dual-mode operation isolates user-level processes from critical system resources and kernel-level processes.
• User mode restricts direct access to hardware and sensitive OS data structures, ensuring their protection.

Privileged Instructions:

• User mode provides access to privileged instructions not available in user mode.
• These instructions allow low-level operations, such as modifying page tables and managing hardware interrupts.

Hardware Management:

• User mode is necessary for efficient hardware resource management.
• It includes tasks like initializing hardware components, scheduling CPU time, and handling hardware interrupts.

Security:

• Dual-mode operation enhances security by preventing unauthorized access to system resources.
• User mode acts as a gatekeeper, ensuring only trusted code can execute privileged instructions.

Fault Handling:

• When faults or exceptions occur, the CPU switches to kernel mode for handling.
• The kernel can take actions like terminating processes or correcting errors to maintain system reliability.

Resource Allocation:

• Dual-mode operation enables effective resource allocation by the operating system.
• The kernel mode can make decisions about process scheduling, memory allocation, and device management.

Advantages of Dual Mode Operations in OS

Dual Mode Operations in an operating system refer to the ability of the OS to switch between two distinct modes of operation: User Mode and Kernel Mode. Each mode has its own set of privileges and responsibilities. Here are eight advantages of implementing dual mode operations in an operating system:

Security:

• Dual Mode Operations:
  Provide security by separating User Mode and Kernel Mode.
• User Mode:
  Restricts access to critical system resources, preventing user-level processes from tampering with the core OS functionality.

Isolation:

• User-Kernel Separation:
  Ensures that a malfunctioning or misbehaving user-level program is less likely to crash the entire system.
• Enhances the system's overall stability and reliability.

Resource Protection:

• Kernel Mode:
  The OS has full access to hardware resources.
• Dual Mode Operations:
  Allow the OS to manage and protect these resources, preventing unauthorized access or modification by user-level processes.

Privilege Levels:

• Kernel Mode:
  Provides elevated privileges for the OS to execute critical tasks like device driver management, memory management, and hardware interaction.
• User Mode:
  Operates at a lower privilege level, reducing the risk of misuse.

Exception Handling:

• Dual Mode Operations:
  Enable the OS to handle exceptions and interrupts more efficiently.
• The Kernel Mode can manage hardware interrupts and exceptions while user-mode processes continue to execute, enhancing overall system responsiveness.

System Calls:

• User-level processes need to make system calls to request services from the OS, such as file operations or memory allocation.
• Dual Mode Operations:
  Allow controlled access to these services, ensuring proper validation and security checks.

Multi-Tasking:

• Dual Mode Operations:
  Facilitate multi-tasking, where multiple user-level processes run concurrently.
• The OS can manage context switches, scheduling, and resource allocation more effectively with Kernel Mode control.

Debugging and Monitoring:

• Debugging tools and monitoring utilities often require Kernel Mode access to gather system-level information or control certain aspects of the OS.
• Dual Mode Operations:
  Allow these tools to function without compromising system integrity.

Limitations of Dual Mode Operations in OS

Dual Mode Operations in an operating system offer several advantages, but they also come with limitations and challenges. Here are a few limitations to consider:

• Complexity:
  Implementing dual mode operations in an OS introduces complexity and potential bugs.
• Performance Overhead:
  Switching between User Mode and Kernel Mode adds performance overhead.
• Compatibility:
  Dual mode operations can limit compatibility with legacy software and older applications.
• Privilege Escalation Risks:
  There's a risk of privilege escalation attacks compromising the system's security.
• Complexity for Developers:
  Developing in dual mode environments is more complex for programmers.
• Limited User Flexibility:
  Separation of User Mode and Kernel Mode can limit flexibility for some applications.
• Resource Contentions:
  In systems with many concurrent processes, resource contentions can lead to bottlenecks.
• Compatibility Across Architectures:
  Dual mode operations may not be easily portable across different hardware architectures.

These limitations underscore the trade-offs and challenges associated with dual mode operations in an operating system. While they provide important security and stability benefits, they also introduce complexities and potential performance overhead that must be carefully managed.
