IoC in Spring

What is IOC Container

The Spring Framework's IoC (Inversion of Control) container is a core component of the Spring Framework, a complete framework for creating industrial Java applications. The Spring IoC container manages the components (Java objects or beans) that make up a Spring application and their dependencies. It achieves this through the concept of dependency injection.

The following are key features and concepts related to the Spring IoC container:

• Dependency Injection (DI): The Spring IoC container implements the principle of dependency injection, which means that it injects the dependencies of a class rather than the class creating or looking up its dependencies. This helps in achieving loose coupling and better testability.
• Beans: Bean is a Java object that the Spring IoC container instantiates, assembles, and manages. Beans are defined in the Spring configuration and are typically Java classes annotated with @Component or configured in XML or Java-based configuration.
• Container Configuration: The configuration of the Spring IoC container can be done using XML-based configuration files, Java-based configuration classes, or a combination of both. These configurations define the beans and their relationships (dependencies) within the application.
• ApplicationContext: The ApplicationContext is the interface to the Spring IoC container. It is responsible for creating, initializing, and assembling the beans. The ApplicationContext also provides additional features such as event propagation, AOP (Aspect-Oriented Programming), and integration with other Spring modules.
• Bean Scopes: Spring supports various bean scopes, including singleton, prototype, request, session, and more. The scope defines the lifecycle and visibility of a bean within the container.
• Lifecycle Management: The Spring IoC container manages the complete lifecycle of a bean, including instantiation, population of properties, and applying initialization and destruction callbacks.

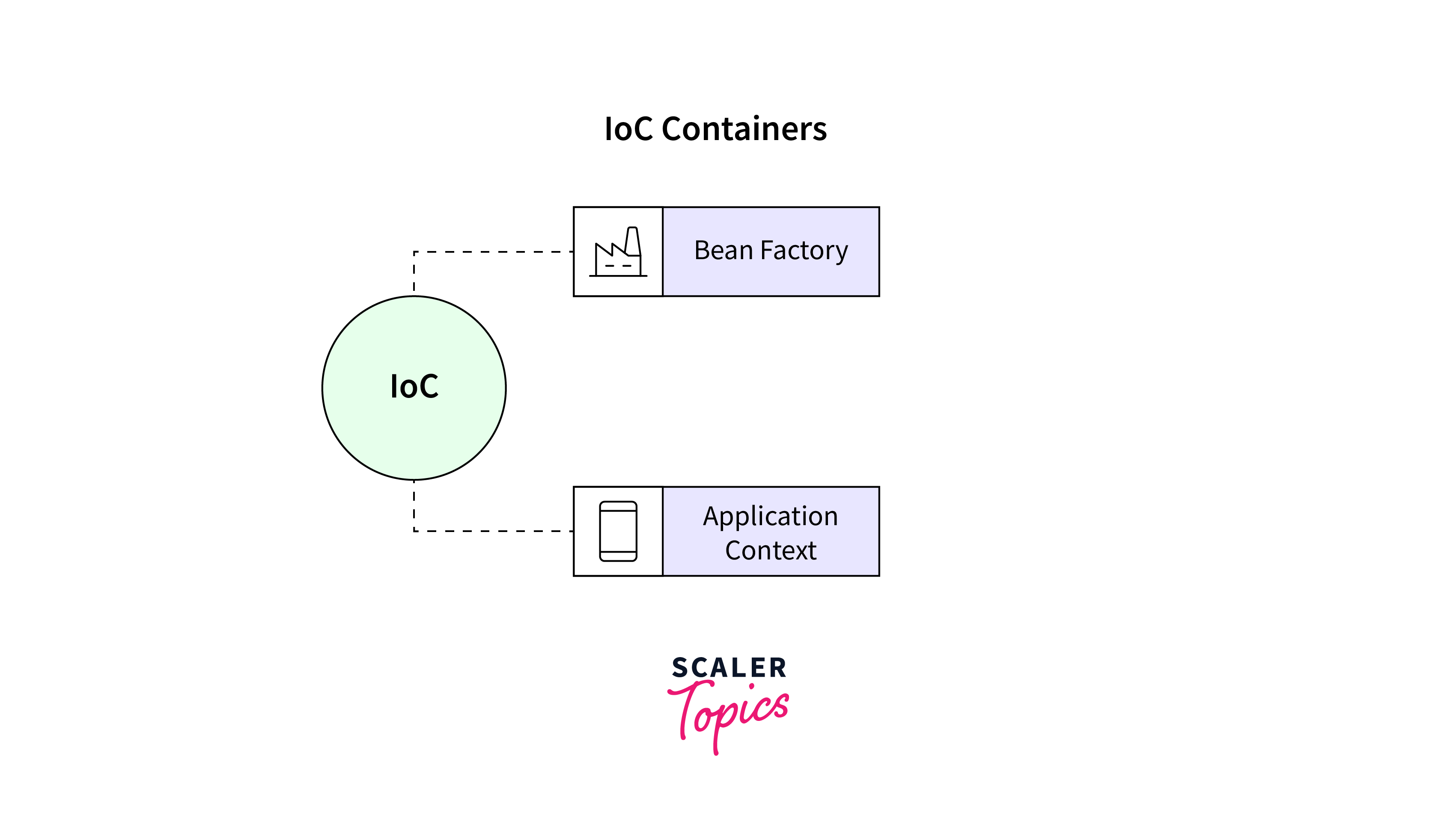

Types of IoC Containers

There are two main types of IoC (Inversion of Control) containers:

1. BeanFactory:

   • The BeanFactory is the simplest form of the Spring IoC container. It is the foundation interface for the Spring IoC container and provides the fundamental features of the container, including the ability to manage beans and their dependencies.
   • Key Characteristics:
     • Lazy loading of beans: Beans are only created when requested.
     • Lightweight: Suitable for resource-constrained environments.
     • Basic container features: Provides essential IoC functionality.

2. ApplicationContext:

   • The ApplicationContext is a more advanced and feature-rich container than BeanFactory. It extends the BeanFactory interface and adds additional functionalities such as event propagation, AOP (Aspect-Oriented Programming), and integration with other Spring modules.
   • Key Characteristics:
     • Eager loading of beans: Beans are preloaded on container startup.
     • Full container features: Provides all BeanFactory features and more features.
     • Suitable for enterprise applications: Offers a wide range of functionalities for complex applications.
     • Supports multiple configurations: XML-based, annotation-based, and Java-based configurations.

These two types represent a continuum of IoC container capabilities, with BeanFactory being a lightweight and basic container and ApplicationContext offering a more extensive set of features suitable for larger and more complex applications.

Additionally, based on the configuration style, IoC containers can be categorized into three types:

1. XML-based Configuration:

   • Configuration uses XML files where beans and their dependencies are defined.
   • Example: Spring XML configuration files.

2. Annotation-based Configuration:

   • Configuration is done using annotations (e.g., @Component, @Autowired) in the source code.
   • Example: Spring's component scanning and annotations.

3. Java-based Configuration:

   • Configuration is done using Java classes (often annotated with @Configuration) that define beans and their relationships.
   • Example: Spring's JavaConfig.

Implementation

Implementing IoC (Inversion of Control) in a software project, particularly using a framework like Spring, involves several key steps. Below is a high-level overview of the implementation process:

1. Define Beans:

   • Identify the classes that will be managed by the IoC container as beans.
   • Annotate the classes with @Component or other relevant annotations to indicate that they are Spring-managed components.

2. Configure Beans:

   • Define the configuration for the IoC container. This can be done using XML-based, annotation-based, or Java-based configuration.
   • Specify how beans are created, injected, and managed.

   XML Configuration:

   Annotation-based Configuration:

3. Instantiate the Container:

   • Create an instance of the IoC container (either BeanFactory or ApplicationContext) based on the chosen configuration style.

4. Retrieve Beans:

   • Use the container to retrieve beans as needed. Beans can be obtained by their name, type, or through auto wiring.

5. Dependency Injection:

   • Let the IoC container manage the injection of dependencies into the beans. This is typically done through a constructor, setter, or field injection.

6. Lifecycle Management:

   • If needed, configure and utilize the lifecycle management features provided by the IoC container. This includes initialization and destruction callbacks.

7. Run the Application:

   When you run the application, the output should demonstrate the lifecycle of the beans. For example:

   Output:

Difference between BeanFactory and the ApplicationContext
