Libuv in Node.js

Introduction to Libuv

Considering that there is only one main gate to enter an event and there are three categories of people: A, B, and C. Also there are two different venues X and Y. In Venue X,

• People go through the metal detection process
• People show their tickets and they check their categories and tickets.

All of this is happening at the main gate. Hence, It slows down the process, blocking the next person until the previous one is not done.

On the other hand, In Venue Y,

• People go through the metal detection process at the main gate.
• And show their tickets at their respective counter according to category.

In this way, They only check if the user exists in the database instead of checking all the details at once. Hence, it finishes the whole process early because it divides the whole process into small tasks and people are distributed automatically without providing information about their category or booking.

In the same way, Nodejs performs various operations while running javascript code. Libuv helps nodejs to perform these operations asynchronously and speed up the efficiency as well as performance whereas the main thread handles the operation and other workers complete the task. Libuv helps nodejs to enable smooth asynchronous operation.

Features of Libuv

The event loop manages the operation and assigns the task according to machine specifications and operating system. And it is called event polling.

TCP and UDP sockets, and child processes are handles that keep the reference of callback. If handles are active, the Event loop allows the callback to run. Thread pools handle tasks in parallel that block I/O operations.

A high-resolution clock is used to track every little moment. Because Date.now is not accurate enough to track the completion time of operations and tasks and Date.now doesn't provide complete information about the date and time.

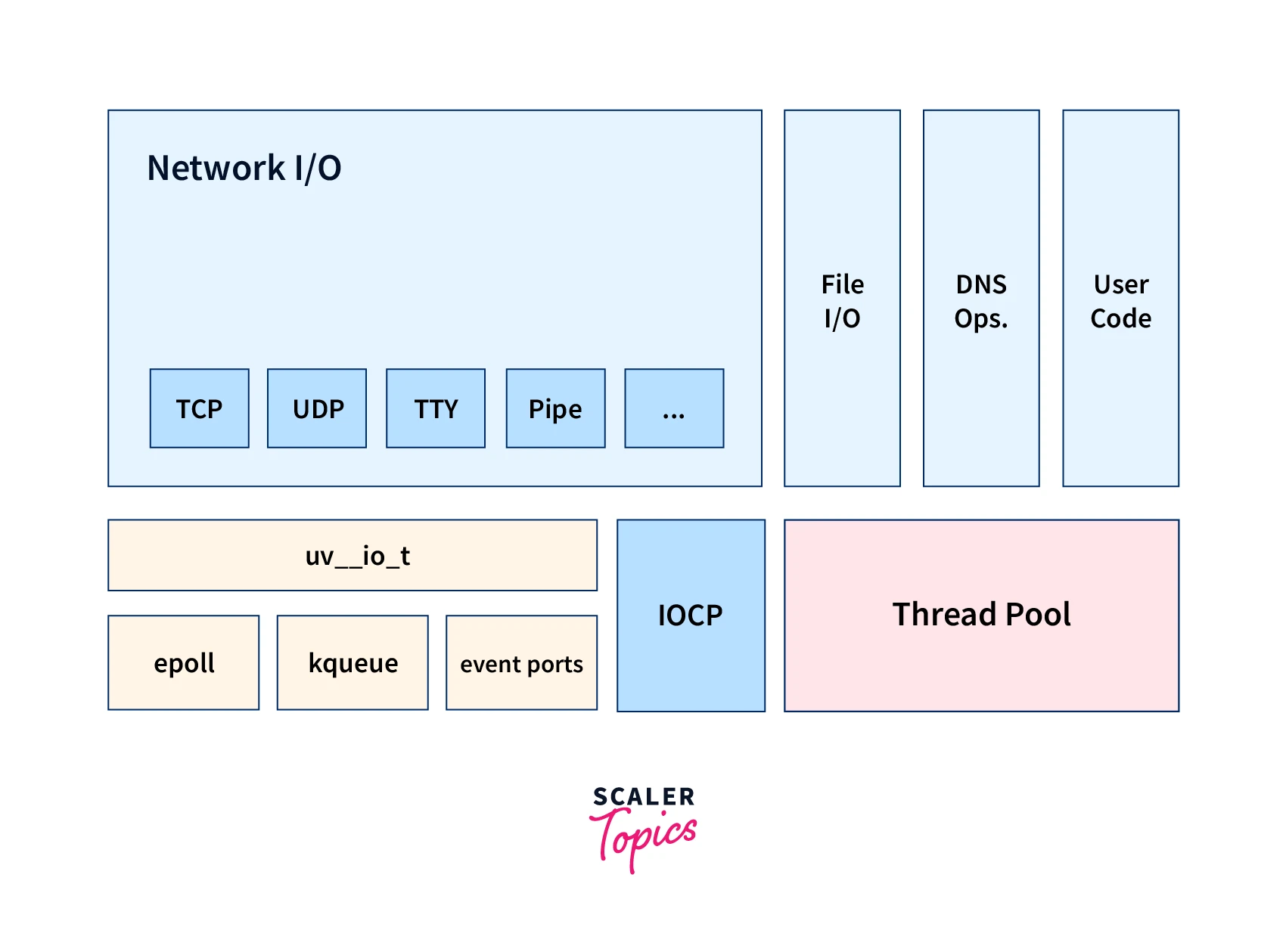

Inter-Process Communication helps processes to communicate with each other and keep the information synchronized. The following figure and bullet points show the features of Libuv:

• Event loop that supports various operating systems (epoll for LINUX, kqueue for OSX, IOCP for windows, event ports for SunOS)
• TCP sockets: ( net module in nodejs )
• DNS resolver: ( dns module in nodejs )
• UDP sockets: ( dgrammodule in nodejs )
• File I/O which includes writing files, reading files, watching file changes, and other operations (fs module in nodejs )
• Child processes: ( child_process in nodejs )
• Threadpool: ( worker_threads module in nodejs)
• Synchronization primitives: It allows the main thread to wait until the worker thread sends the signal
• High-resolution clock
• Inter-Process Communication using sockets and Unix domain sockets (Windows)

Event or I/O Loop

In Libuv, the Event loop plays an important role to reduce the workload of the nodejs system. The event loop mainly has two parts: Event Queue and Threads

• The event loop listens to the event and adds events to the event queue. Then, The event loop assigns tasks to worker threads that handle the request.
• It tracks the movement like the time to process the request, and whether an operation is completed or terminated.
• Event loop continuously keeps checking the status of assigned tasks and adds/removes the event to the event queue as needed.

File I/O

File I/O in the libuv divides the big operations into small operations and allows threads to queue the task in a loop. These threads perform the task conditionally based on success/failure notification.

Example

Consider if you perform the following tasks on your PC:

• Task-1: Editing a file in a Notepad
• Task-2: Using chrome browser
• Task-3: Working on excel sheet

So, when you are editing a file in notepad, the PC does not terminate Task-2 and Task-3 but instead adds them to a queue. In the same way, when you work with an excel sheet, the PC adds them to a queue.

Hence, All task-1, task-2, and task-3 are running parallelly. And when you switch tasks, the PC adds the current task to priority and puts all other tasks in the loop.

Libuv Thread Pool

By default, Libuv uses 4 threads to handle the operations and tasks. It reduces the workload of synchronous operations and avoids blocking tasks unnecessarily. We can use any number of threads up to 1024 and it also depends on the performance parameter of the system. We use the UV_THREADPOOL_SIZE variable to set the threads in nodejs.

Physical vs Logical CPU Cores

Consider that an intel i5 processor has 4 CPU cores to handle the operations. And these cores are called physical cores. But if CPU cores are hyper-threaded, then each one of them can perform 2 operations parallelly. Therefore, there are 8 CPU cores and it is called logical cores.

How to Check For Logical Cores?

When we deploy our app on any platform i.e. (web, android/ios, desktop), the app might run on any operating system having different machine specifications. And in that case, we can set the thread pool size dynamically based on the respective operating system as shown below

In the above code block, We use the os module to get the length of the CPU cores and the process module to set the environment variable UV_THREADPOOL_SIZE for the current machine specifications. The cpus().length return the total no of logical cores.
