Kanban-Style Boards for Visual Workflow in JIRA

Introduction

Kanban, a lean project management method developed by Toyota, focuses on visualizing work and promoting continuous improvement. JIRA's Kanban-style boards provide a digital representation of a traditional Kanban board, allowing teams to visualize their workflow and manage tasks more efficiently.

JIRA's Kanban-style boards offer several features that improve workflow management. Work-in-progress (WIP) limits can be set for each column, preventing overload and promoting a smooth workflow. By following these constraints, teams can identify bottlenecks and quickly address them, improving efficiency and reducing cycle time.

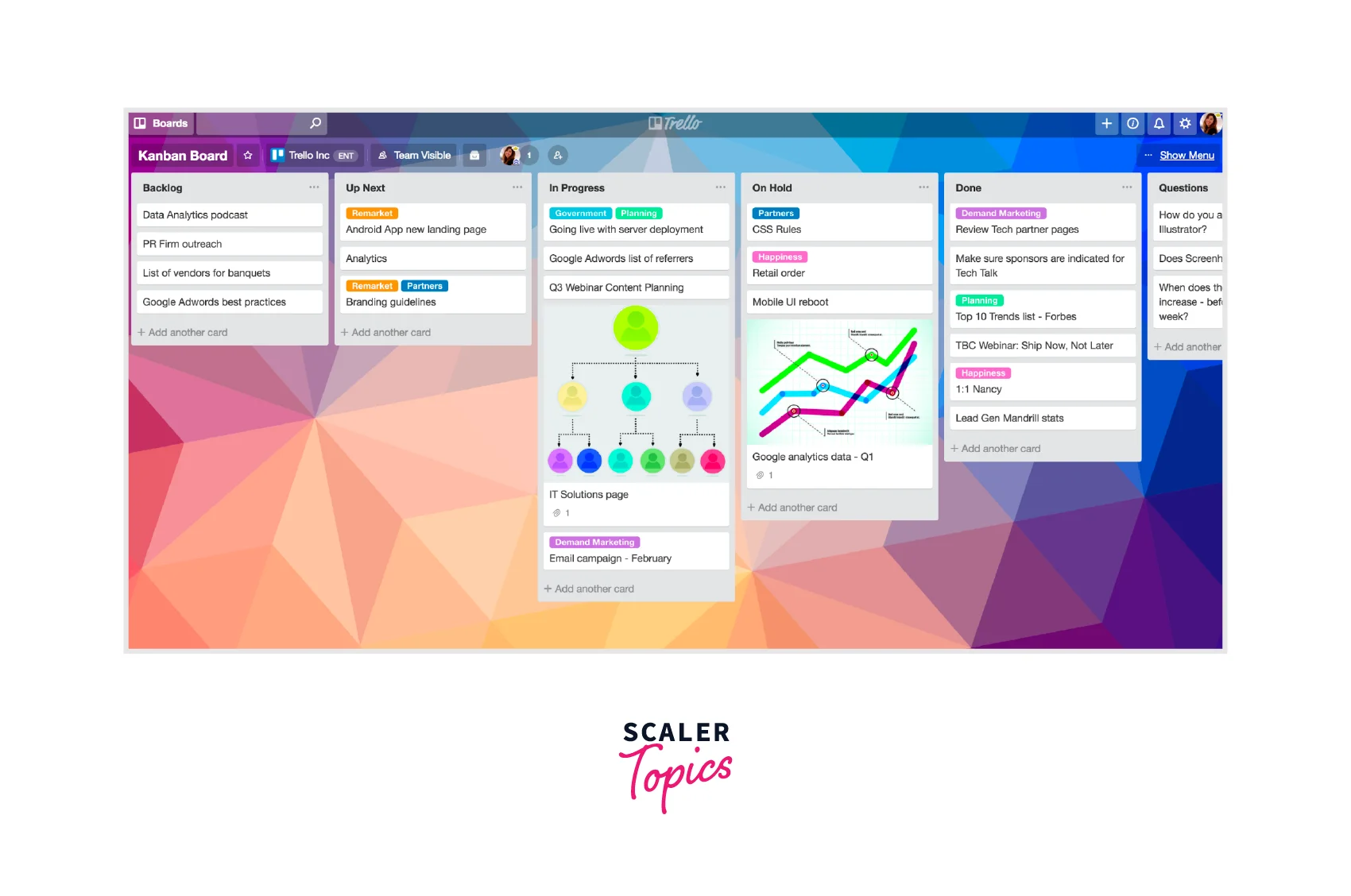

What is a Kanban Board in Jira?

A JIRA Kanban board usually consists of columns representing different stages of work, such as "To Do", "In Progress" and "Done". Each column represents a specific state or phase of operation. Work items marked with cards or topics are placed in these columns based on their current status. JIRA Kanban boards also support applying WIP limits. These boundaries help teams focus, avoid overload, and promote a smooth workflow. By setting the maximum number of cards allowed in each column, teams can identify and solve problems that cause work to pile up or stall. The JIRA Kanban board is a powerful tool that provides a visual overview of work progress, improves collaboration and transparency, and empowers teams to manage their projects effectively.

What is Kanban Methodology?

The Kanban methodology emphasizes the concept of limiting work in progress (WIP). This means that a team or individual should not take on more work than they can effectively handle at any given time. By setting WIP limits, teams can prevent bottlenecks, reduce multitasking and maintain a smooth workflow. WIP limits also encourage teams to finish existing work before starting new tasks, increasing focus and productivity.

Another key principle of Kanban is managing workflow through continuous improvement. Teams regularly review their Kanban board and workflow to optimize areas. They can collect data on cycle times, lead times, and other performance metrics to analyze bottlenecks or inefficiencies. This data-driven approach enables teams to make informed decisions and implement changes that improve productivity and overall workflow.

Types of Kanban Boards

Several types of Kanban boards can be used to visualize and manage work. The choice of board type depends on the specific needs and context of the team or project. Here are some common types of Kanban boards:

1. Main Kanban board:
   The main Kanban board consists of columns representing different stages of work such as "To Do", "In Progress" and "Done". It provides a simple and clear visual representation of tasks and their progress.
2. Two-dimensional Kanban board:
   The two-dimensional Kanban board adds an extra dimension to the basic board by introducing swim lanes. Lanes can be used to classify jobs according to different criteria, such as groups, projects, or priority levels. These types of boards provide a more organized view, allowing teams to track multiple workflows simultaneously.
3. Value Stream Mapping Board:
   Value Stream Mapping Boards focus on visualizing the entire value stream or workflow of a process from the start of work to its delivery. It helps identify different stages of the workflow, contact responsibility changes, and potential bottlenecks, allowing teams to optimize the total value delivery process.
4. Portfolio Kanban Board:
   Portfolio Kanban boards are used to manage and visualize the work of multiple projects or initiatives at a higher level. They provide insight into the status and progress of various projects, allowing stakeholders to prioritize and allocate resources efficiently.
5. Personal Kanban board:
   Personal Kanban boards are designed to manage individual tasks. They help people visualize and manage their work, usually using columns like "To Do", "In Progress" and "Done". Personal Kanban boards are effective for personal productivity and time management.
6. Hybrid Kanban board:
   Hybrid Kanban boards combine elements of different board types to meet specific needs. These may include features such as swimlanes, value stream mapping, or other custom columns that reflect the unique workflow and requirements of a team or project.

Elements of a Kanban Board

1. Columns:
   Columns represent different stages or states of a workflow. Each column represents a certain stage that the work unit goes through. Common column names are "To Do", "In Progress", "Testing" and "Done". The number and names of columns may vary depending on the group's workflow.
2. Cards or work items:
   Cards, also known as work tools or Kanban cards, represent individual tasks or work units. Each card represents a specific job that needs to be done. Cards usually contain important information such as task descriptions, assignees, deadlines, priorities, and other related information.
3. Tracks:
   Tracks provide an additional level of classification or organization on the Kanban board. These are horizontal sections that divide the board into separate tracks, often used to group tasks based on different criteria such as teams, projects, or priority levels. Swimlanes help visualize and manage multiple workflows simultaneously.
4. Work in Progress (WIP) Limits:
   WIP limits indicate the maximum amount of work allowed in each column at any given time. WIP limits help prevent overload and promote a balanced workflow. By setting WIP limits, teams can identify bottlenecks and ensure that team capacity is not exceeded, thus maintaining a smooth workflow.
5. Task policies or definitions:
   Task policies or definitions are guidelines or conditions that determine when a work item in a particular column is considered complete. Each column can have its policies that define specific requirements for moving a card from one column to another. These practices ensure clarity and consistency in understanding the workspace.
6. Visual indicators:
   Visual indicators are used to describe the status or progress of work items on a Kanban board. This can be as simple as moving cards between columns or using additional symbols, colors, or labels to indicate task priority, urgency, or other relevant information. Visual indicators allow team members to quickly understand the status of work.
7. Metrics and Analytics:
   Although not a physical element of the board itself, metrics and analytics are an important part of Kanban. Teams often use various metrics such as cycle time, lead time, efficiency, and cumulative flow charts to analyze their workflow and identify areas for improvement. These metrics provide information about team performance and help optimize processes.

Create a Kanban Board in JIRA

To create a Kanban board in JIRA, follow these steps:

1. Log in to your JIRA account and go to the project for which you want to create a Kanban board.
2. When you are in the project, click on the "Boards" tab in the top menu.
3. Select "Create Board" from the drop-down menu and select "Kanban Board".
4. You will be asked to assign a board. Give your board a name that reflects its purpose or the team it represents.
5. Next, you can choose to create a new filter or use an existing filter to determine what things to display on the board. The filter determines the scope of the board and the things visible on it. You can set different filters according to your needs.
6. After installing the filter, you can configure the map settings. This includes the types of projects and issues to be involved and any additional conditions you may wish to impose on the board.
7. Customize the whiteboard columns according to your team's workflows. By default, JIRA provides three columns: "To Do", "In Progress" and "Done". You can add, remove, or rename columns for specific steps in your workflow.
8. Define work-in-progress (WIP) limits for each column to control the number of issues allowed in each stage. This helps maintain a balanced workflow and prevents overload.
9. Alternatively, you can set up swimlanes to group things by specific criteria, such as receivers, components, or tags. Swimming lanes add organization and clarity to your desk.
10. Review the settings and click "Create" to create a Kanban board in JIRA.

Why Use Kanban Boards in Jira?

• Visualize workflow:
  Kanban boards provide a visual representation of work and its progress. By organizing tasks into columns and moving them to different sides, teams can easily see the status of work items, understand the progress of tasks and identify bottlenecks or delays.
• Improve workflow efficiency:
  Kanban boards promote a smooth and efficient workflow. By limiting work in progress (WIP) and ensuring that tasks progress through different stages without backlogs, teams can maintain a smooth workflow.
• Improve collaboration and communication:
  Kanban boards encourage collaboration and facilitate effective team communication. Team members can see the status of tasks, who is responsible for each item, and any dependencies or blockers. This transparency promotes better coordination, encourages teamwork, and enables timely decision-making.
• Prioritize and manage work:
  Kanban boards help teams effectively prioritize and manage their work. By seeing all tasks in one place, teams can assess their workload, identify critical issues and make informed decisions about what to do next.
• Track progress and metrics:
  Jira Kanban boards allow teams to track progress and collect valuable metrics. By analyzing data such as cycle time, lead time, or performance, teams can identify areas for improvement, optimize their processes and make informed decisions. These metrics provide insight into team performance and contribute to continuous improvement.
• Flexibility and customization:
  Kanban boards offer flexibility and customization options to meet the specific needs of teams and projects. Teams can customize columns, swim routes, WIP limits, and other settings to suit their workflow.
• Integration with Jira features:
  Kanban boards integrate seamlessly with other Jira features such as task linking, subtasks, attachments, comments, and issue tracking. This integration allows teams to manage their work holistically in Jira, keeping all relevant information in one centralized location.

How to Use Kanban Boards to Manage Workflows in Jira?

Using Kanban boards to manage workflows in Jira involves several important practices. Here's a step-by-step guide to effectively using Kanban boards to manage workflow in Jira.

1. Define your workflow:
   Start by clearly defining the stages or states through which jobs will progress. This can include stages such as 'Task', 'In Progress', 'Review', and 'Done'. Define the appropriate workflow steps for your project or team.
2. Create a Kanban board:
   Create a Kanban board in Jira that reflects your defined workflow. Place columns on the board to represent each step in the workflow. You can add columns to store specific statuses or project-related statuses.
3. Set WIP Limits:
   Set appropriate WIP limits for each column. WIP limits specify the maximum number of work items allowed in a given column at any given time. These limits prevent congestion and promote a balanced workflow.
4. Populate the board:
   Add work items (tasks, issues, user stories, etc.) to the Kanban board. Place each item in the appropriate column according to its current state in the workflow. This allows you to visualize the progress of each item and track its movement.
5. Update and track work:
   As work progresses, move items between columns on the board according to their updated status. This can be done by dragging the items to the desired column. Make sure the items accurately reflect the current state of the work.
6. Monitor WIP and Flow:
   Continuously monitor WIP limits and workflow with a Kanban card. Watch out for columns that reach the WIP limit or cause bottlenecks. Regularly check and adjust WIP limits or optimize the workflow to keep the workflow running smoothly.
7. Collaborate and communicate:
   Use the Jiras Kanban board as a visual tool to improve collaboration and communication within your team. Encourage team members to regularly update the board, comment on things, and use @maininna to facilitate conversations and deliver updates.
8. Track and analyze metrics:
   Use a Kanban board to collect and analyze metrics related to your workflow. Jira provides a variety of reports and graphs that allow you to monitor cycle time, execution time, throughput, and other performance metrics. Use this knowledge to identify areas for improvement and make informed decisions.
9. Continuous Improvement:
   Regularly review and reflect on the Kanban board and workflow. Identify opportunities to optimize the process, remove bottlenecks, and simplify operations. Encourage the team to share feedback, suggest improvements, and test changes to improve efficiency and productivity.
